Uniform grid builderClass is used to generate uniform grid, a grid with constant distance between points. More...

#include <uniformGridBuilder.hpp>

Inheritance diagram for marian::UniformGridBuilder:

Public Member Functions
	UniformGridBuilder ()
	Constructor.

std::vector< double >	buildGrid (double low, double upp, int N, double concentration=0.0) const override
	builds uniform grid More...

	~UniformGridBuilder ()
	Destructor.

Public Member Functions inherited from marian::DCGridBuilder< UniformGridBuilder >
virtual GridBuilder *	clone () const
	Virtual copy constructor.

Public Member Functions inherited from marian::GridBuilder
virtual	~GridBuilder ()
	destructor

Detailed Description

The grid is defined as:

$x_0 = x_{low}$

$x_{i+1} = x_i + i \delta_x$

for $i=1,\dots,N$ , where $\delta_x = \frac{x_{upp} - x_{low}}{N}$

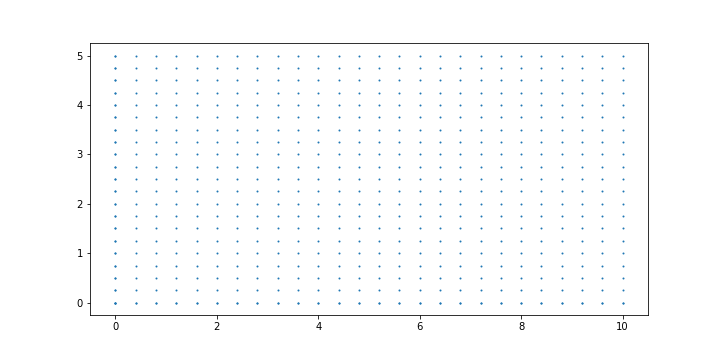

Below the code generating 2d grid and its visualization.

UniformGridBuilder ugb;
auto grid1 = ugb.buildGrid(0.0, 10.0, 25);
auto grid2 = ugb.buildGrid(0.0,  5.0, 20);
for (auto x : grid1) {
  for (auto y : grid2) {
    std::cout << x << ";" << y << std::endl;
  }
}

Examples:: convergenceExample.cpp, EuroOptExample.cpp, and FokkerPlanckEqExample.cpp.

Member Function Documentation

std::vector< double > marian::UniformGridBuilder::buildGrid	(	double	low,
		double	upp,
		int	N,
		double	concentration = `0.0`
	)		const

overridevirtual

Parameters

low	Lower bound
upp	Upper bound
N	Number of grid points (N-1 intervals between lower and upper bound)

Implements marian::GridBuilder.

Examples:: FokkerPlanckEqExample.cpp.

The documentation for this class was generated from the following files:

C:/Unix/home/OEM/fdm/src/FDM/gridBuilders/uniformGridBuilder.hpp
C:/Unix/home/OEM/fdm/src/FDM/gridBuilders/uniformGridBuilder.cpp
